Optimizing IMU Performance for Robotics and Industrial Systems with Xsens

Walking through the Strip District or navigating the steep, metallic inclines of Mt. Washington, it is simple to forget that Pittsburgh is no longer just the “Steel City”—it is the global epicenter of the robotics revolution. But for the engineers and startups operating out of the Robotics Row corridor, there is a persistent, invisible enemy: magnetic distortion. When you are deploying high-precision autonomous vehicles or industrial cobots in an environment literally built on a foundation of iron and steel, the “digital compass” inside an Inertial Measurement Unit (IMU) can become wildly unreliable. This is where the latest technical guidance from Xsens becomes a critical asset for the local tech ecosystem.

The core of the issue lies in how IMUs interpret the world. Most industrial-grade sensors rely on a combination of accelerometers, gyroscopes, and magnetometers to determine orientation. However, in a city like Pittsburgh, where old warehouses in the Mon Valley are filled with structural steel and modern labs are packed with high-voltage equipment, “magnetic noise” is everywhere. This noise creates distortions that lead to “drift,” where a robot thinks it is facing north when it is actually veering toward a conveyor belt or a wall. Xsens has recently addressed this head-on with a comprehensive tutorial focusing on mitigating these distortions through advanced calibration techniques, specifically targeting the needs of robotic and industrial applications.

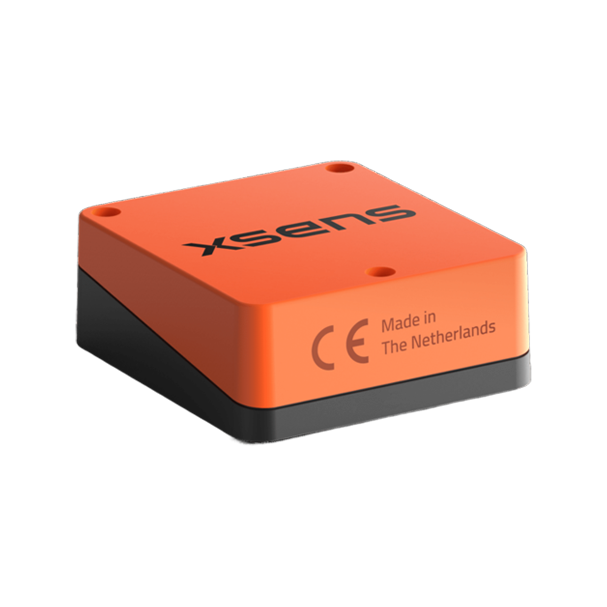

The Battle Against Magnetic Noise in Urban Industrial Hubs

For the researchers at the Carnegie Mellon University (CMU) Robotics Institute, the challenge of “sensor fusion” is a daily reality. The Xsens tutorial highlights the use of the Magnetic Field Mapper and In-run Compass Calibration—tools designed to identify and cancel out the effects of “hard iron” and “soft iron” distortions. Hard iron distortions are caused by permanent magnets or magnetized metal within the sensor’s own chassis, while soft iron distortions occur when nearby metallic objects warp the Earth’s magnetic field. In a dense industrial setting, both are present and pervasive.

The shift toward “Low-SWaP” (Size, Weight, and Power) solutions, such as the Xsens Avior series, is particularly relevant for the swarm-robotics projects currently being piloted across Western Pennsylvania. By reducing the physical footprint of the sensor while maintaining industrial-grade precision, developers can integrate sophisticated navigation into smaller drones or humanoid robots without sacrificing stability. The ability to perform real-time calibration means these machines can adapt to the magnetic environment of a specific facility on the fly, rather than relying on a static map that becomes obsolete the moment a new piece of machinery is moved into the room.

Beyond the Land: Marine Applications and the Ohio River

While much of the focus in Pittsburgh is on land-based robotics, the regional logistics network relies heavily on the Ohio River. Xsens has introduced a specialized Heave Algorithm for their Sirius and Avior modules, effectively turning standard AHRS (Attitude and Heading Reference Systems) into full industrial-grade MRUs (Motion Reference Units). This allows for vertical motion data with an accuracy of $le 5$ cm for heave periods up to 29 seconds.

For marine operators and offshore engineers working on river-based stabilization systems, this level of precision is transformative. Whether it is stabilizing a floating crane for bridge repair or managing autonomous barges, the ability to compensate for heave, roll, pitch, and yaw in real-time ensures that heavy equipment remains steady despite the unpredictable currents and swells of the river. This intersection of inertial sensing and marine engineering is a growing niche that bridges the gap between Pittsburgh’s industrial heritage and its high-tech future.

The Socio-Economic Ripple Effect of Precision Sensing

The democratization of these calibration tools doesn’t just help the “big players.” It lowers the barrier to entry for boutique automation firms and hardware startups. When a small team can implement an “In-run Compass Calibration” without needing a PhD in geophysics, the speed of iteration increases. We are seeing this play out in the local “maker” culture and the various incubators supported by the Pittsburgh Robotics Council, where the focus is shifting from “can we make it move” to “can we make it move with millimeter precision in a noisy environment.”

the application of motion capture—specifically the Xsens Link and its washable eSuit—is finding its way into the healthcare sector. Institutions like UPMC (University of Pittsburgh Medical Center) are increasingly looking at high-fidelity motion data to analyze patient rehabilitation and workplace ergonomics. By removing the need for cumbersome camera arrays and relying on wireless, inertial sensing, clinicians can track movement in real-world environments rather than sterile labs, leading to better patient outcomes and more natural data collection.

Navigating the Local Implementation Landscape

Given my background in analyzing the intersection of geography and industrial technology, I know that reading a tutorial is one thing, but implementing these systems in a legacy industrial environment is another. If your operations in the Pittsburgh area are struggling with sensor drift or autonomous navigation failures, you shouldn’t try to solve the “magnetic puzzle” in a vacuum. You need a specific blend of local expertise to bridge the gap between the Xsens hardware and your specific facility’s layout.

Depending on your project’s scale, here are the three types of local professionals Consider be looking for to ensure your systems are truly calibrated for the Steel City’s unique environment:

Sensor Fusion & Embedded Systems Integrators

These are the specialists who can actually write the middleware that connects an Xsens IMU to your robot’s control system. When hiring, look for professionals who have a proven track record with Kalman filtering and experience integrating GNSS/Inertial Navigation Systems (INS). They should be able to explain exactly how they handle “drift” and “bias” in a way that aligns with your specific operational tolerances.

Industrial Magnetic Surveyors

Before you can calibrate a sensor, you need to know where the “hot spots” of interference are in your building. Look for consultants who specialize in electromagnetic interference (EMI) mapping. The ideal provider will use tools similar to the Magnetic Field Mapper to create a “distortion map” of your facility, allowing you to place sensors in the most neutral locations possible.

Robotics Compliance & Safety Auditors

In an industrial setting, a robot that “drifts” isn’t just a technical failure—it’s a safety hazard. You need auditors who understand the ISO standards for collaborative robots (cobots). Ensure they have experience with “fail-safe” protocols, ensuring that if the IMU detects an irrecoverable magnetic distortion, the system triggers an immediate, safe halt rather than continuing on a corrupted trajectory.
